Viega, Fire Protection R120

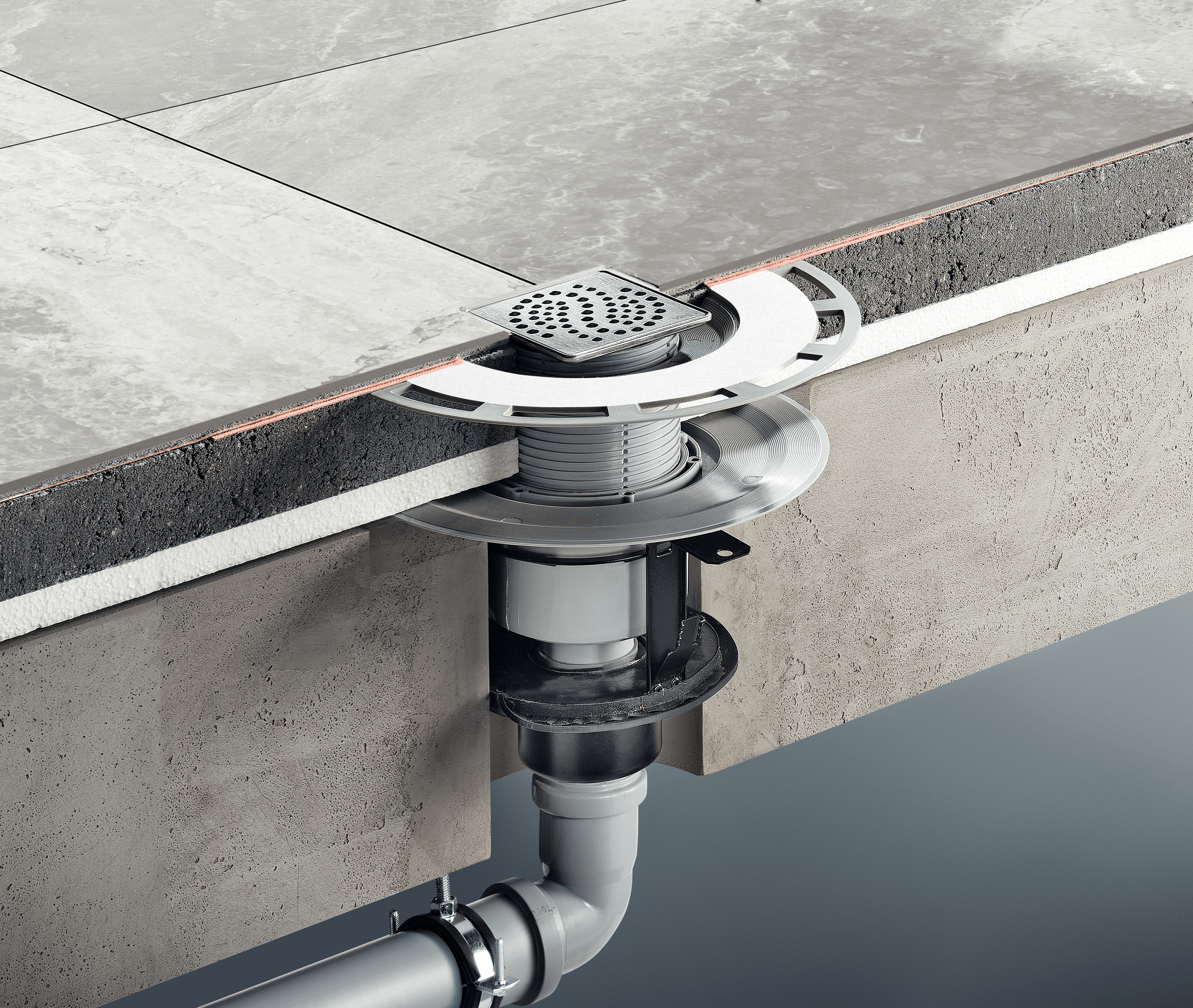

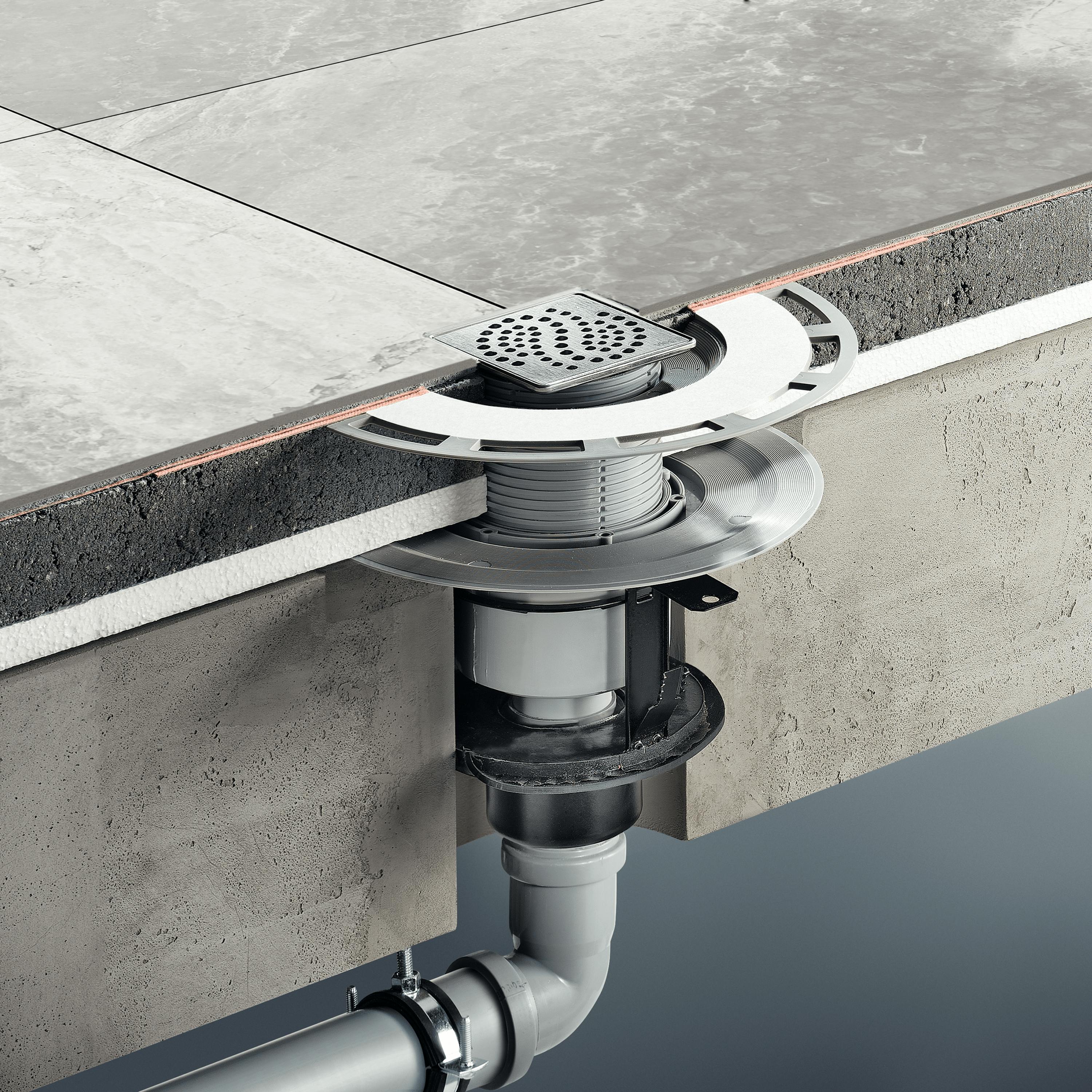

In an unfortunate fire event, a conventional drain and drainpipe may melt and compromise and provides an opening in which fire can spread. Viega’s Advantix bath drain R120 and Advantix pipe lead-in R120 can resist fire up to 120 minutes by swelling to fill the gap to prevent the fire spread.

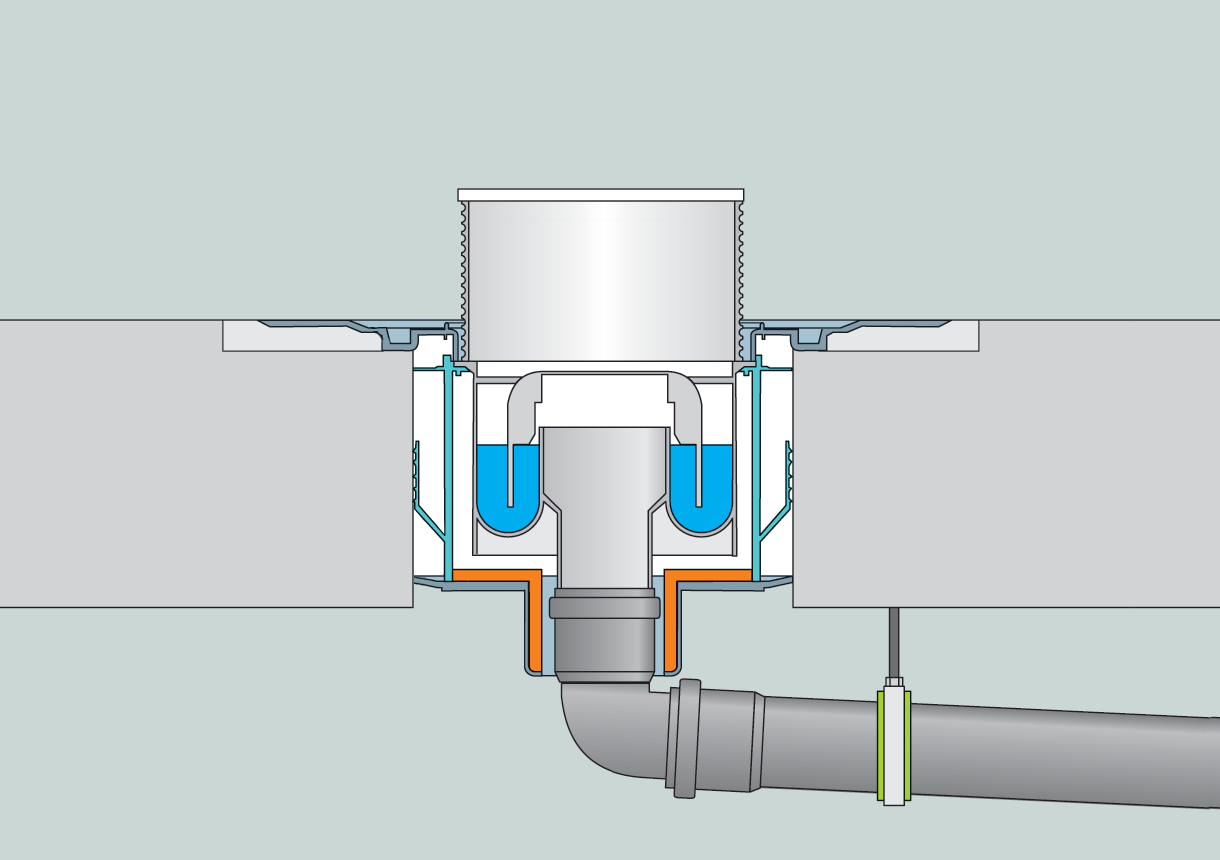

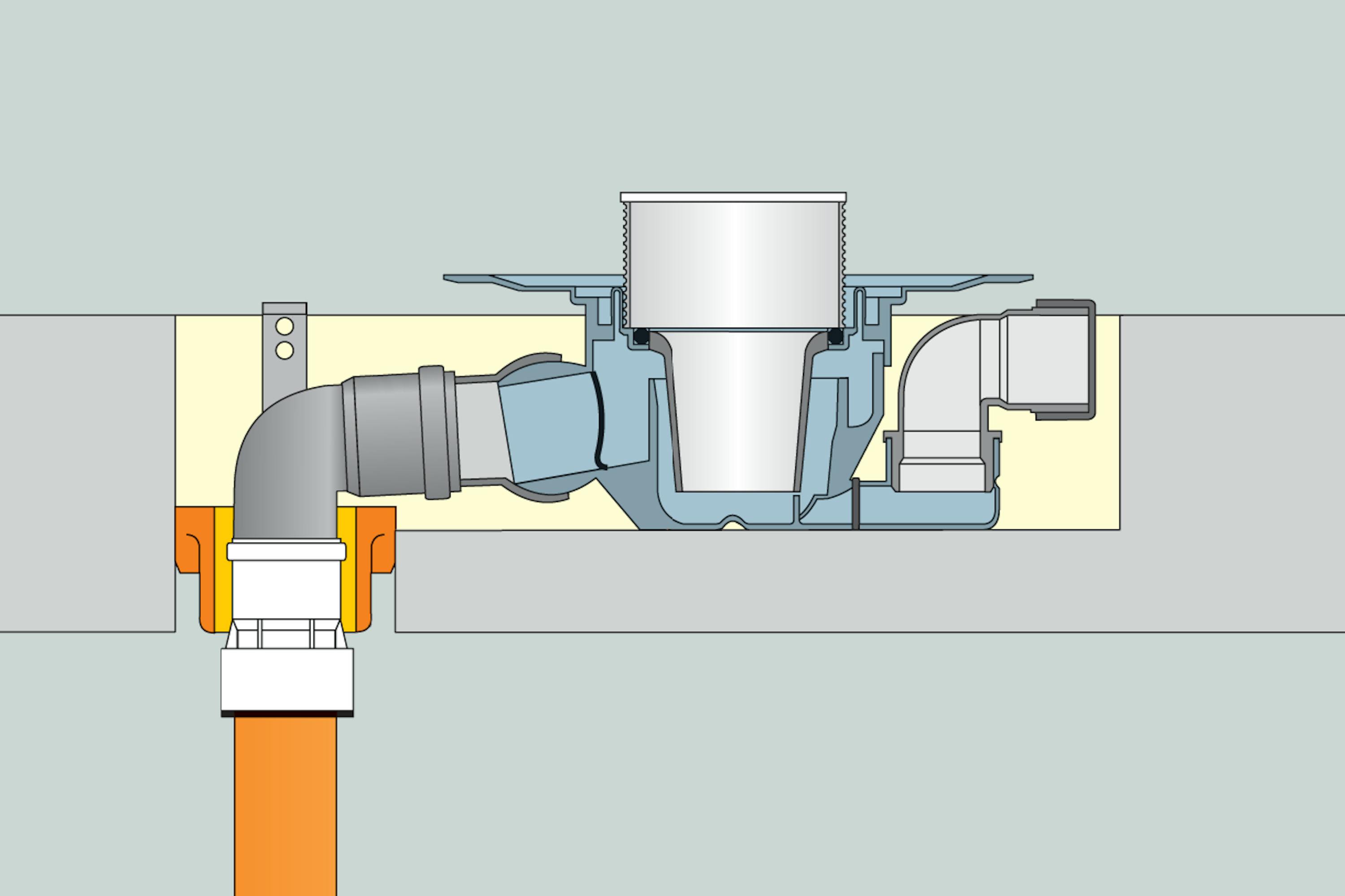

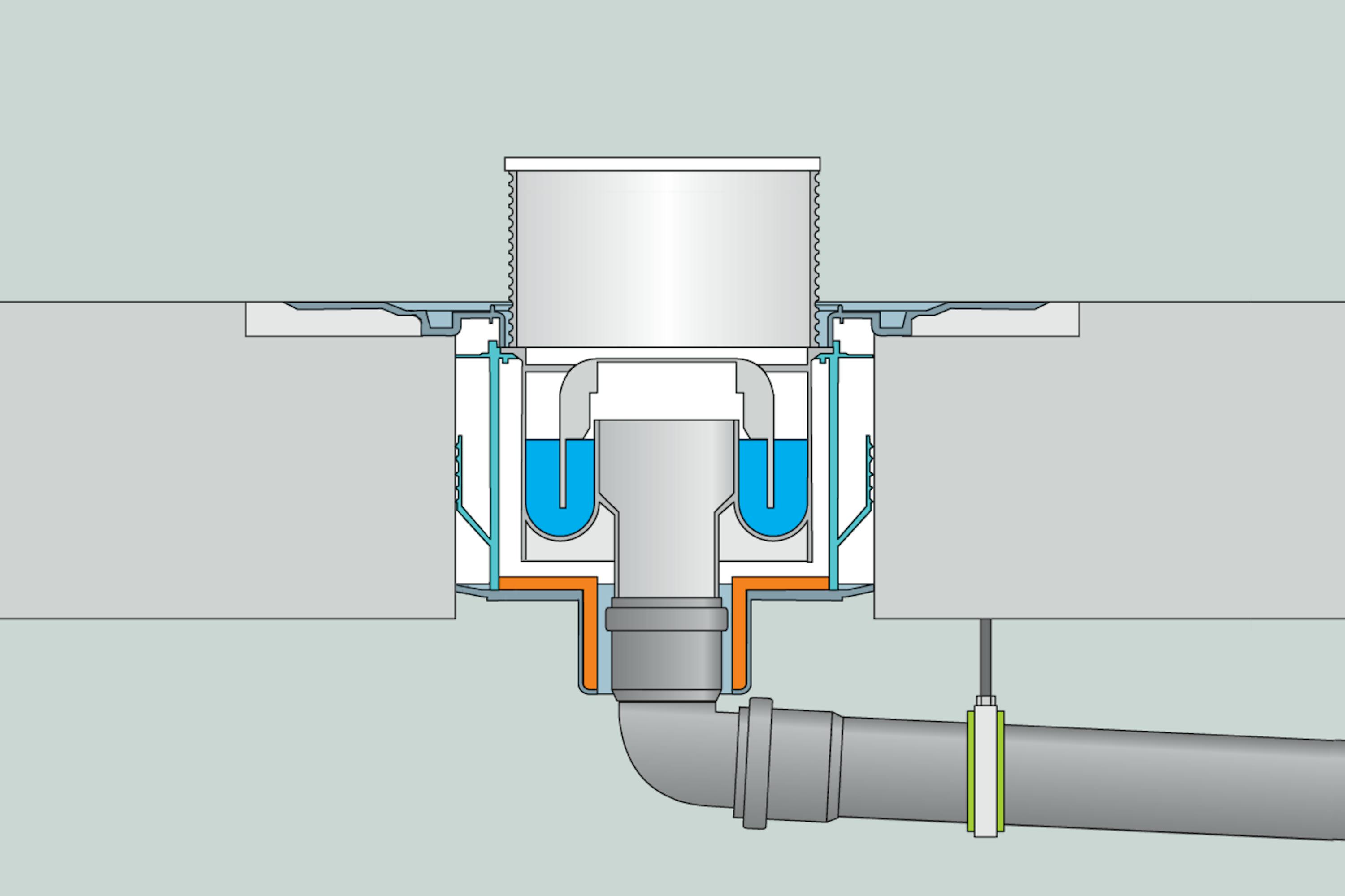

In the normal day, the Advantix bath drain R120 comes with a water seal to prevent odour entering the bathroom. The Advantix pipe lead-in can be connected to a Viega shower channel with this feature.

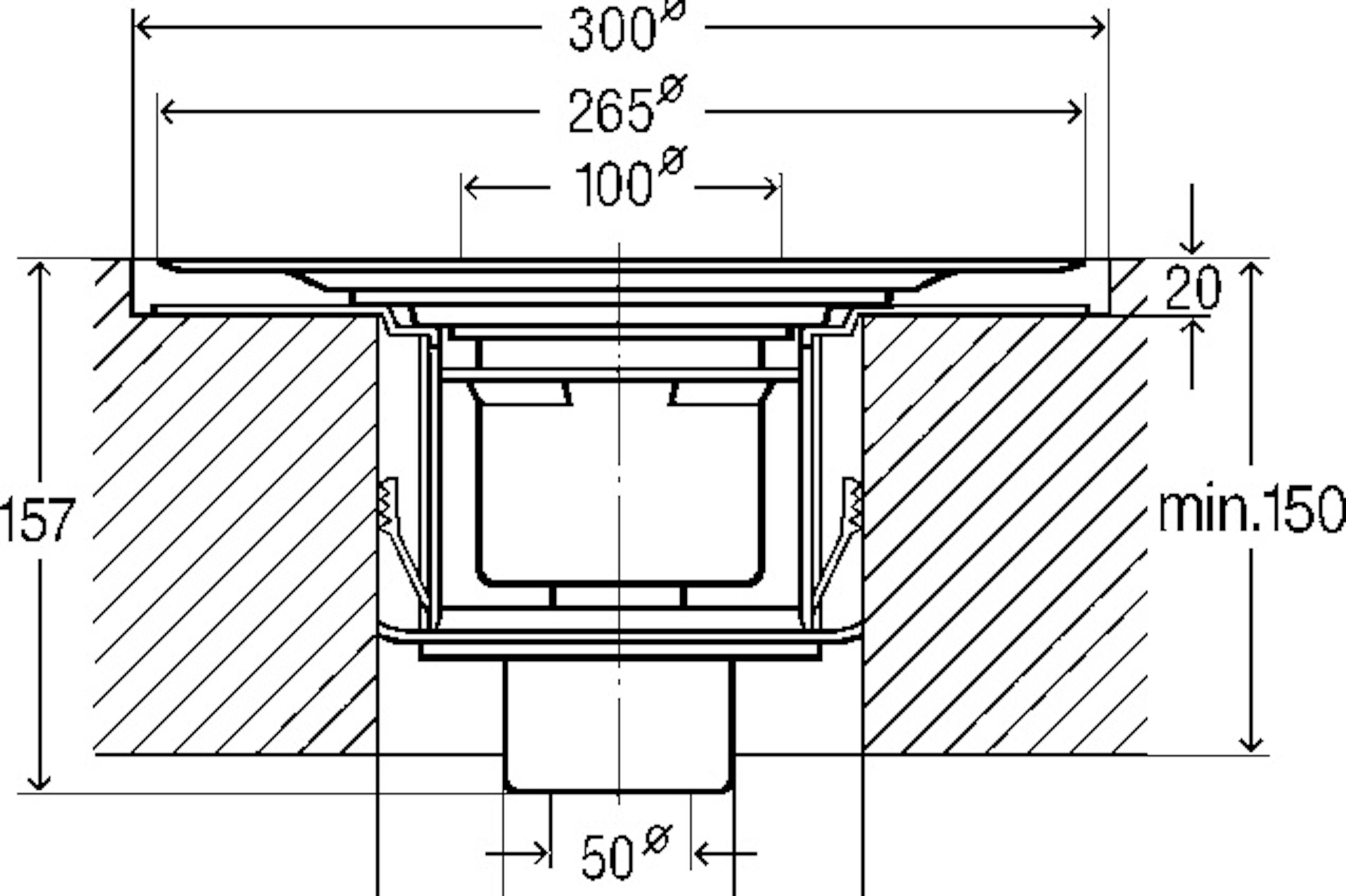

Both Advantix bath drain R120 and Pipe lead-in R120 can be installed in floors at least 150mm thick (including bonded screed / floor installation panels, etc) through drill holes.

The product is designed to handled residential wastewater with pH higher than 4 and less than 10. It is able to handle short term high temperature of 95°C but temperature should be lower in constant operation.

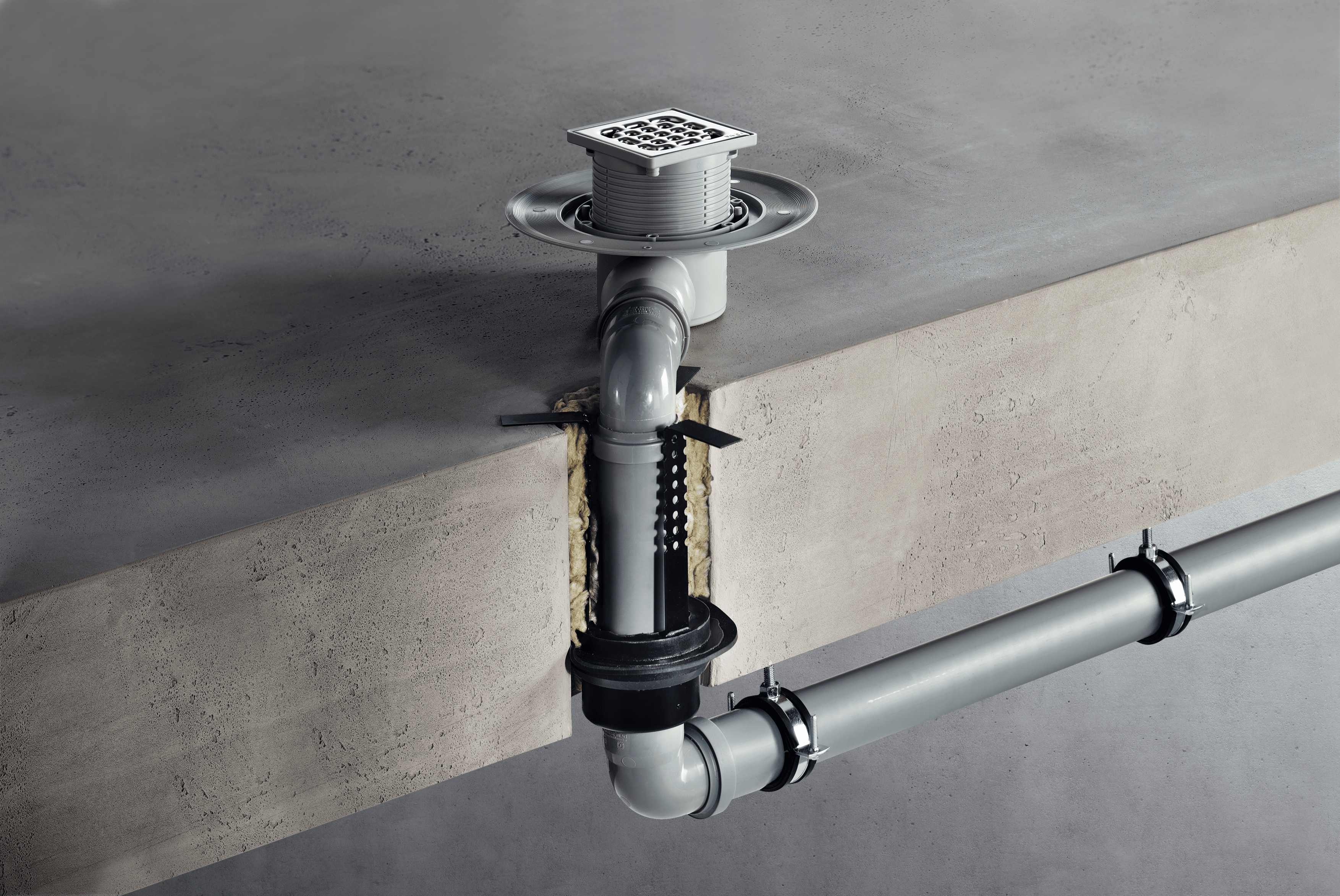

In a fire event, where the drainpipe may had melted away, the Advantix bath drain R120/pipe lead-in R120 swelling compound will start expanding and seal the opening. Its mortar anchors of the fire protection sleeve firmly secure the floor drain in place, creating a closure to prevent further spread.

The product is easy to install without any tools for mounting. It complies with all requirements for fire protection and offers a high degree of safety by reducing damages to property and assists to provide more time to escape.

About the brand

Viega is an expert in healthy drinking water in buildings and one of the key technology leaders in the installation sector. As a quality-focused family business employing almost 5000 people, the company has over 120 years of experience in building technology. Our role is to maintain and develop drinking water hygiene, energy efficiency, comfort and safety in buildings.
